Backup And Restore Etcd In Kubernetes

Etcd is a consistent and highly available key-value store used as Kubernetes’ backing store for all cluster data. If your Kubernetes cluster uses etcd as its backing store, make sure you have a backup plan for those data.

All Kubernetes objects are stored on etcd. Periodically backing up the etcd cluster data is important to recover Kubernetes clusters under disaster scenarios, such as losing all control plane nodes. The snapshot file contains all the Kubernetes states and critical information. In order to keep the sensitive Kubernetes data safe, encrypt the snapshot files.

Backing up your Kubernetes cluster data by backing up etcd is of crucial importance. etcd is the backend storage solution for the deployed Kubernetes cluster. All the K8s objects, applications & configurations are stored in etcd.

1. Backing up ‘etcd’ data is done using etcd command-line tool: etcdctl


   ETCDCTL_API=3 etcdctl --endpoints $ENDPOINT snapshot save <filename>

2. Restoring etcd can be done from a backup using the etcdctl snapshot restore command:

   ETCDCTL_API=3 etcdctl snapshot restore <filename>

The steps are as follows:

1) Execute the etcdctl command to check the Cluster name. Lookup for the cluster.name in the etcd cluster:

ETCDCTL_API=3 etcdctl get cluster.name \
> --endpoints=https://10.0.1.101:2379 \
> --cacert=/home/cloud_user/etcd-certs/etcd-ca.pem \
> --cert=/home/cloud_user/etcd-certs/etcd-server.crt \
> --key=/home/cloud_user/etcd-certs/etcd-server.key

What does each mean:

• endpoint -> instructing etcdctl how to reach out to etcd serve
• cacert -> public certificate for certificate authority
• cert -> the client certificate
• key -> certificate key

2) Snapshot save will save the backup with the name supplied as an argument:

ETCDCTL_API=3 etcdctl snapshot save /home/cloud_user/etcd_backup.db \
> --endpoints=https://10.0.1.101:2379 \
> --cacert=/home/cloud_user/etcd-certs/etcd-ca.pem \
> --cert=/home/cloud_user/etcd-certs/etcd-server.crt \
> --key=/home/cloud_user/etcd-certs/etcd-server.key

3) Now, stop etcd, Delete etcd data dir. Reset etcd by removing all the existing etcd data:

4) Snapshot restore on the etcd data will restore the data back as a temporary etcd cluster. This command will spinup a temp etcd cluster, saving the data from the backup file to a new data dir in the same location where the previous data dir was:

sudo ETCDCTL_API=3 etcdctl snapshot restore /home/cloud_user/etcd_backup.db \
> --initial-cluster etcd-restore=https://10.0.1.101:2380 \
> --initial-advertise-peer-urls https://10.0.1.101:2380 \
> --name etcd-restore \ > --data-dir /var/lib/etcd

5) Since I executed the operation as Root, I will have to make etcd as the user. Set ownership on the new directory & start etcd:

sudo chown -R etcd:etcd /var/lib/etcd
sudo systemctl start etcd

6) Verify the restored data by looking up the value for the key cluster.name again:

ETCDCTL_API=3 etcdctl get cluster.name \
> --endpoints=https://10.0.1.101:2379 \
> --cacert=/home/cloud_user/etcd-certs/etcd-ca.pem \
> --cert=/home/cloud_user/etcd-certs/etcd-server.crt \
> --key=/home/cloud_user/etcd-certs/etcd-server.key cluster.name beebox

At this point, this can be said that our etcd database is properly restored.

Also Check: Our blog post on Kubernetes Statefulset.

Upgrade Kubernetes Cluster [Master & Worker Nodes]

To upgrade a Kubernetes cluster is very important to keep up with the latest security features and bug fixes, as well as benefit from new features being released on an ongoing basis. This is especially important when we have installed a really outdated version or if we want to automate the process and always be on top of the latest supported version.

Here, we demonstrate Draining & Uncordoning by upgrading the kubeadm, kubectl & kubelet on the Control Plane node & Worker node in our Kubernetes set up one by one:

Control Plane Upgrade Steps:

a) Upgrade kubeadm on the Control Plane node
b) Drain the Control Plane node
c) Plan the upgrade (kubeadm upgrade plan)
d) Apply the upgrade (kubeadm upgrade apply)
e) Upgrade kubelet & kubectl on the control Plane node
f) Uncordon the Control Plane node

Worker Node Upgrade Steps:

a) Drain the node
b) Upgrade kubeadm on the node
c) Upgrade the kubelet configuration (kubeadm upgrade node)
d) Upgrade kubelet & kubectl
e) Uncordon the node

Starting with the Control node, the following is the configuration:
1) Upgrade kubeadm

sudo apt-get update && \
> sudo apt-get install -y — allow-change-held-packages kubelet=1.20.2–00 kubectl=1.20.2–00

Kubeadm version for the Control node is shown as ‘v1.20.2’, but it is not applied yet. The output of ‘kubectl get nodes’ clearly shows that the version is still ‘v1.20.1’

2) Drain the Control node

kubectl drain k8s-control --ignore-daemonsets

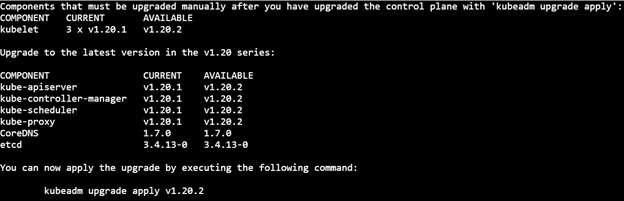

3) Plan the upgrade

sudo kubeadm upgrade plan v1.20.2

4) Apply the upgrade

sudo kubeadm upgrade apply v1.20.2

5) Upgrade kubelet & kubectl

sudo apt-get install -y --allow-change-held-packages kubelet=1.20.2-00 kubectl=1.20.2-00

6) Uncordon the node
Note: It may be possible that the upgrade may change the kubelet unit file, so daemon-reload is executed in order that systemctl sees the new kubelet unit file. Next restart the kubelet

sudo systemctl daemon-reload
sudo systemctl restart kubelet
kubectl uncordon k8s-control

Finally, the latest version of the components of the Control node can be checked on executing ‘kubectl get nodes’:

Steps for the Worker node:

1) Drain the Worker node (from the Control node console)

kubectl drain k8s-worker1 --ignore-daemonsets --force

2) Upgrade kubeadm

sudo apt-get update && \
> sudo apt-get install -y --allow-change-held-packages kubeadm=1.20.2-00

3) Upgrade the kubelet configuration

sudo kubeadm upgrade node

4) Upgrade kubelet & kubectl

sudo apt-get update && \
> sudo apt-get install -y --allow-change-held-packages kubelet=1.20.2-00 kubectl=1.20.2-00

5) Restart kubelet & Uncordon the Worker node

sudo systemctl daemon-reload
sudo systemctl restart kubelet

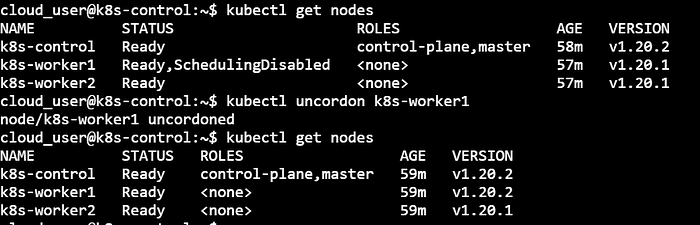

6) Uncordon the Worker node (from the control node console)

kubectl uncordon k8s-worker1

Till this point, our Kubernetes setup has a Control plane node & Worker node-1 in an upgraded and functional state. The same set of steps will be followed for Worker node-2 to have it in the upgraded state.
